ANT-1 – Ex e Antenna for Industrial Wireless Applications
ANT-1 is a flexible Ex e rated antenna developed by Mimes for demanding industrial and hazardous area wireless applications. The antenna is designed for use with ISA100, WirelessHART and other 2.4 GHz and 5 GHz wireless systems, providing a robust and practical antenna solution for industrial field devices.

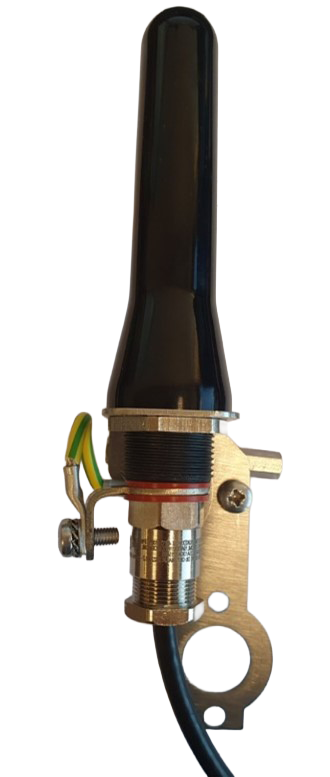

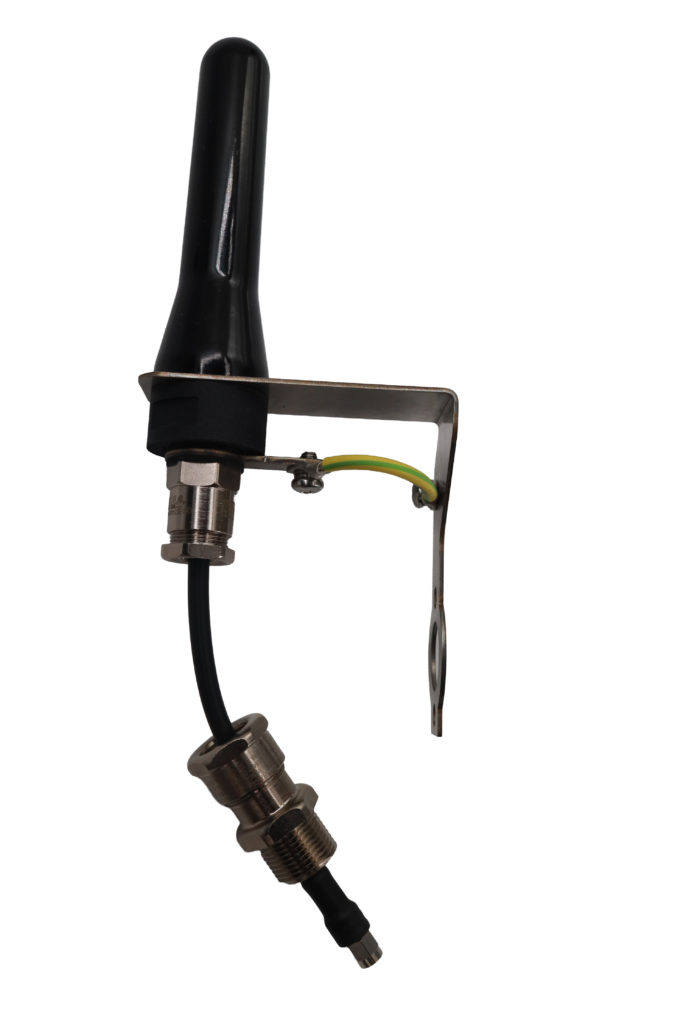

The ANT-1 was developed to simplify installation and reduce the need for additional Ex barriers, special protection methods or complex antenna arrangements. By using an Ex e antenna design, the antenna can be mounted directly with a suitable bracket, helping reduce components, installation time and system complexity.
The antenna is supplied with pre-terminated cable and is available with different cable length options, giving high flexibility during installation in the field. This makes ANT-1 suitable for both Mimes products and third-party equipment requiring a reliable Ex rated antenna solution.
With omnidirectional coverage in the horizontal plane and strong vertical coverage, ANT-1 supports reliable wireless communication in challenging industrial environments such as offshore, marine, energy, process and hazardous area installations.
Key Features
– Ex e rated antenna for hazardous area applications
– Suitable for ISA100, WirelessHART and other 2.4 GHz / 5 GHz wireless systems
– Designed to reduce the need for additional Ex barriers
– Pre-terminated cable for simple installation
– Omnidirectional horizontal coverage
– Good vertical radiation coverage
– Suitable for Mimes and third-party wireless devices
– Designed for harsh industrial and offshore environments
