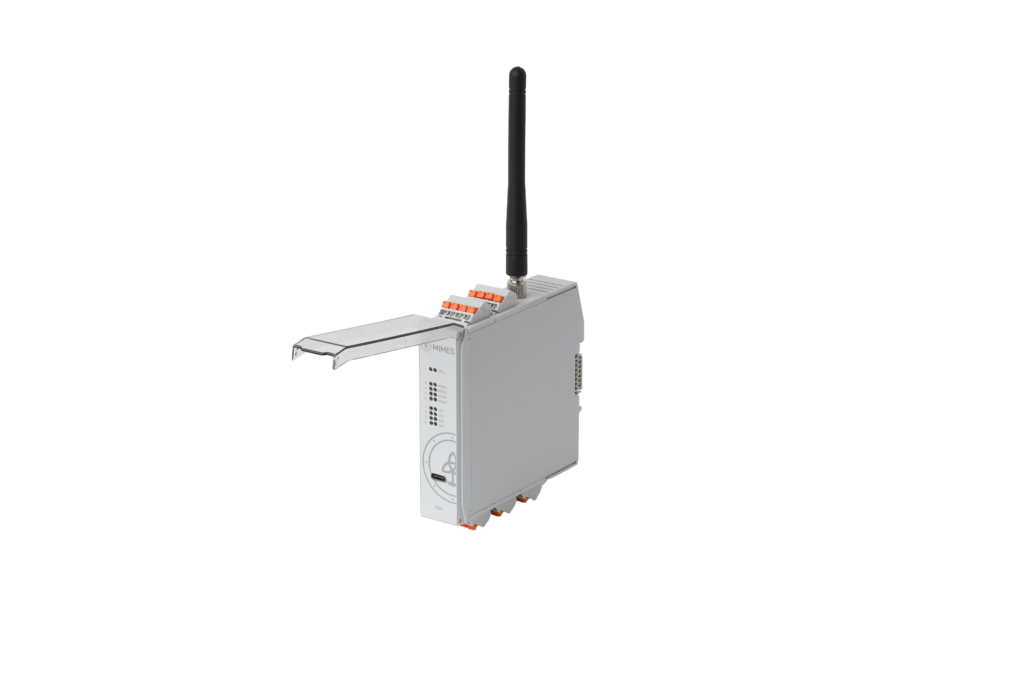

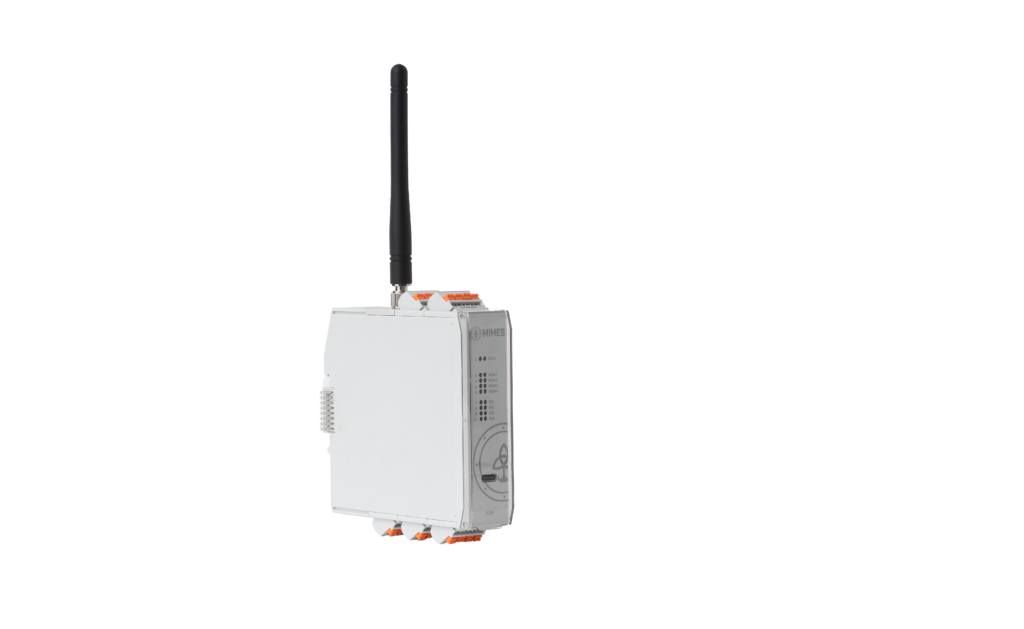

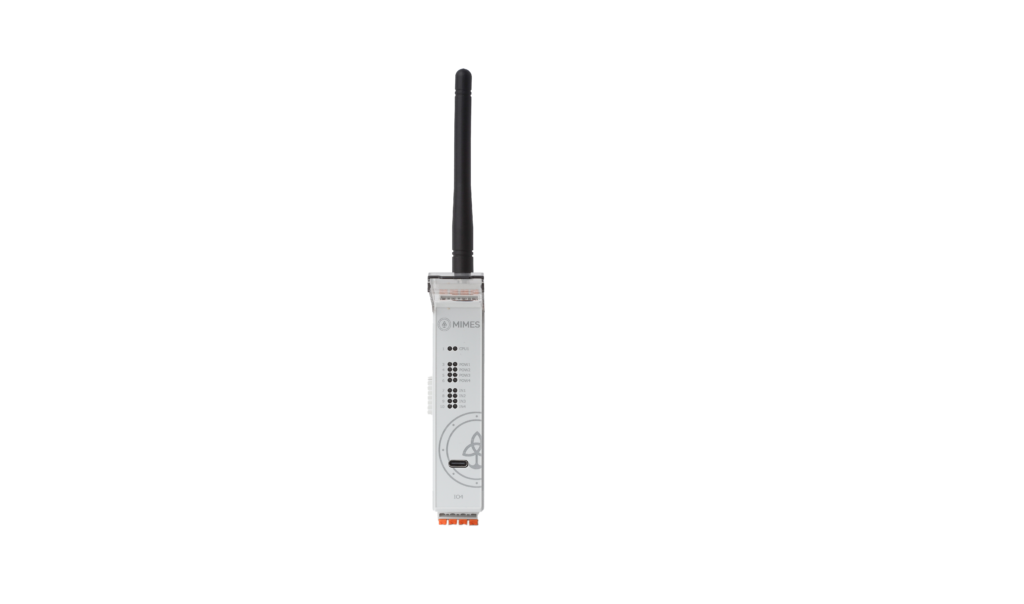

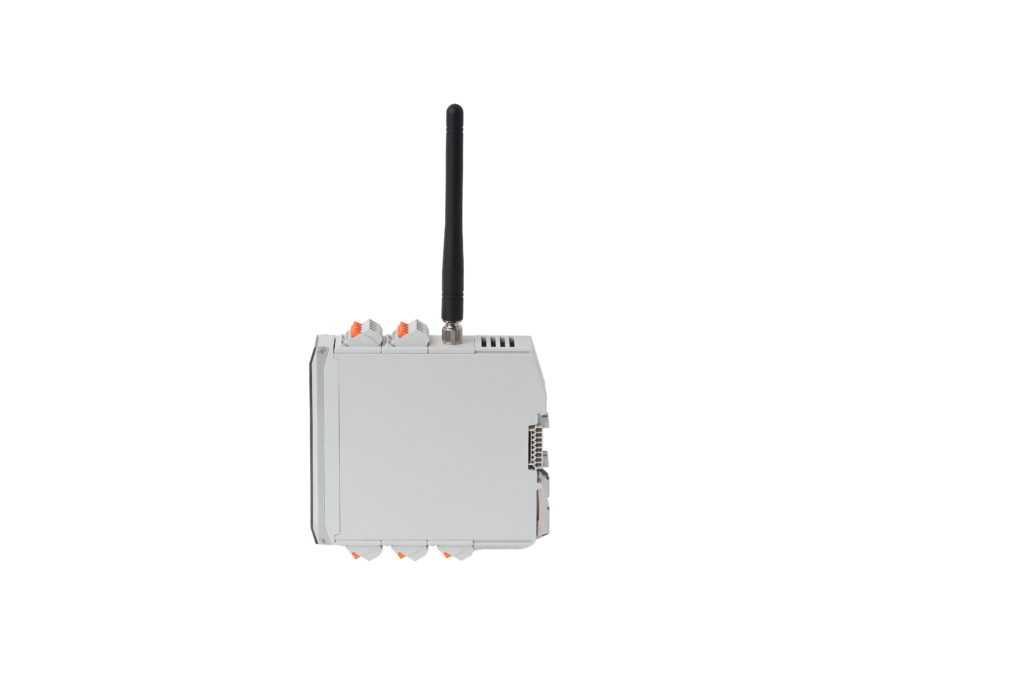

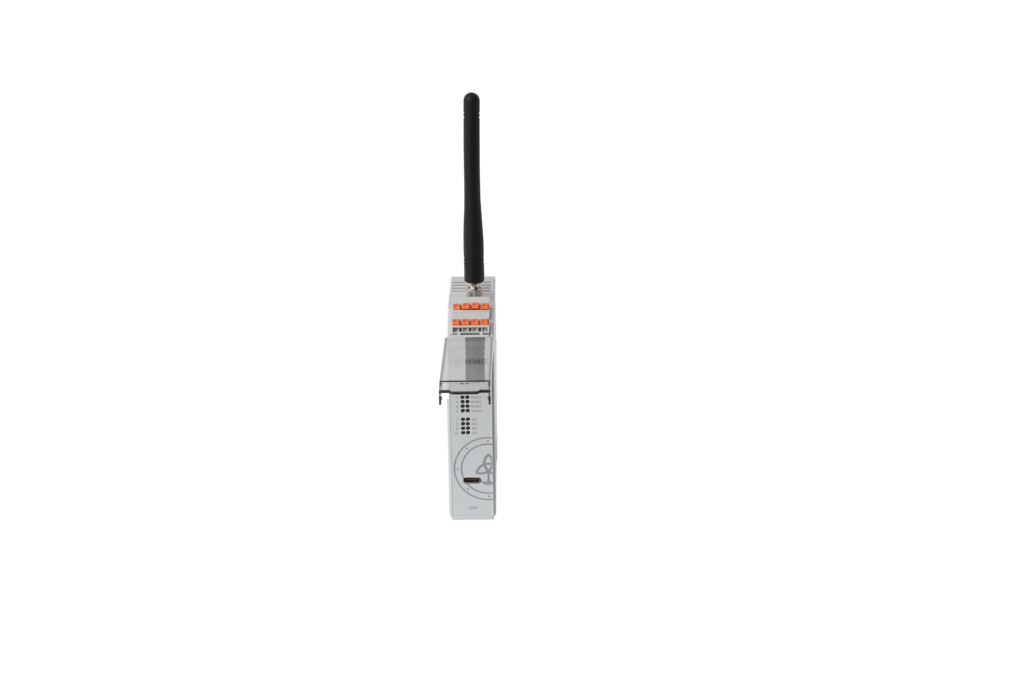

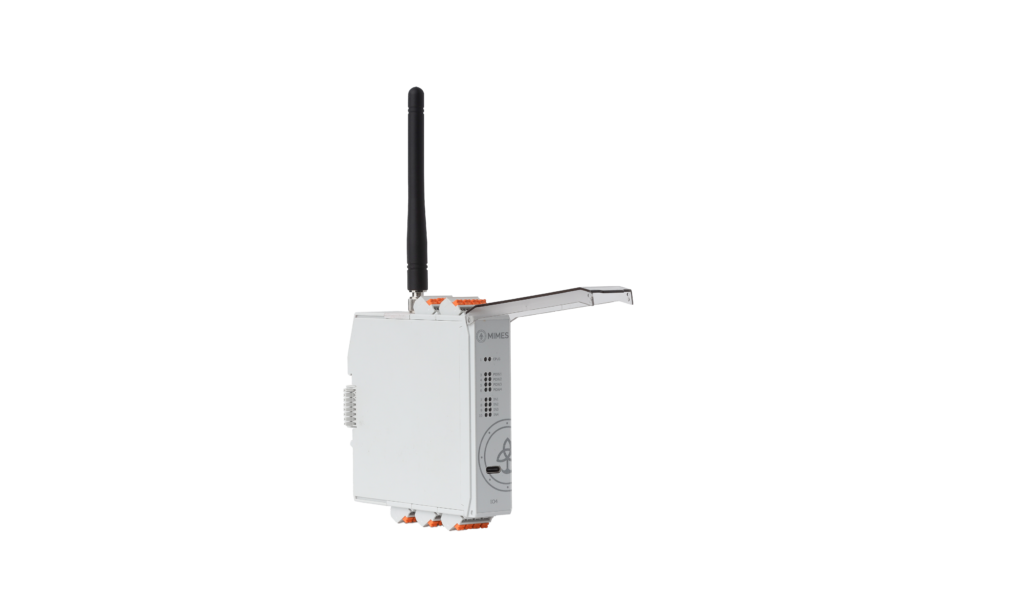

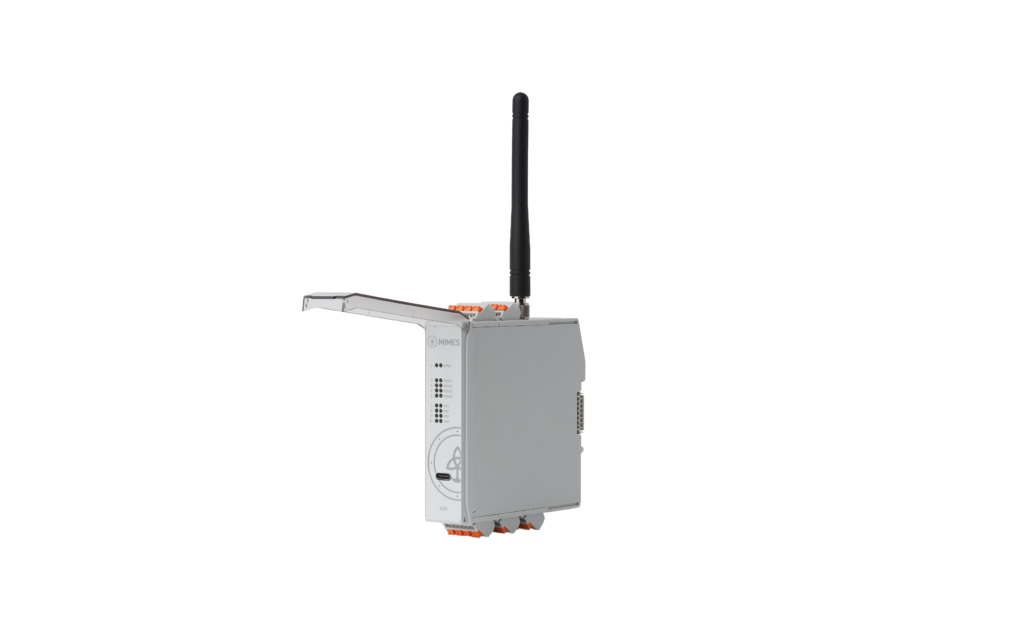

RadioHub IO4
RadioHub IO4 Industrial is a standalone wireless I/O module with backbone capabilities for industrial field instrumentation and remote I/O applications. The module provides 4 × 4–20 mA analogue inputs with optional HART, and supports industrial and safety enabled (PROFIsafe) ISA100 wireless communication for reliable signal transfer without extensive field cabling.
The IO4 Industrial can be used for standard 3-wire 4–20 mA field devices, or configured to support 4 analogue inputs and 4 high-power digital outputs, enabling both measurement and local output control in one compact module.
Features
– ISA100 wireless communication
– SIL2-capable module available
– Standalone module with backbone capabilities
– 4 × 4–20 mA analogue inputs
– Optional HART
– External RS485
– Supports 3-wire field devices
– Optional 4 × high-power digital outputs
– Compact modular industrial design
– Suitable for process monitoring, remote I/O, utilities, infrastructure and industrial control
– Enables reduced field cabling and flexible system expansion
Interfaces
– 1 × RS485 communication interface for external equipment
– 2 × RS485 backbone communication interfaces
– 2 × 24 VDC power connections on backbone
