RadioPush Button RPB-CP7 GRP Series

RadioPush Button RPB-CP7-GRP Series

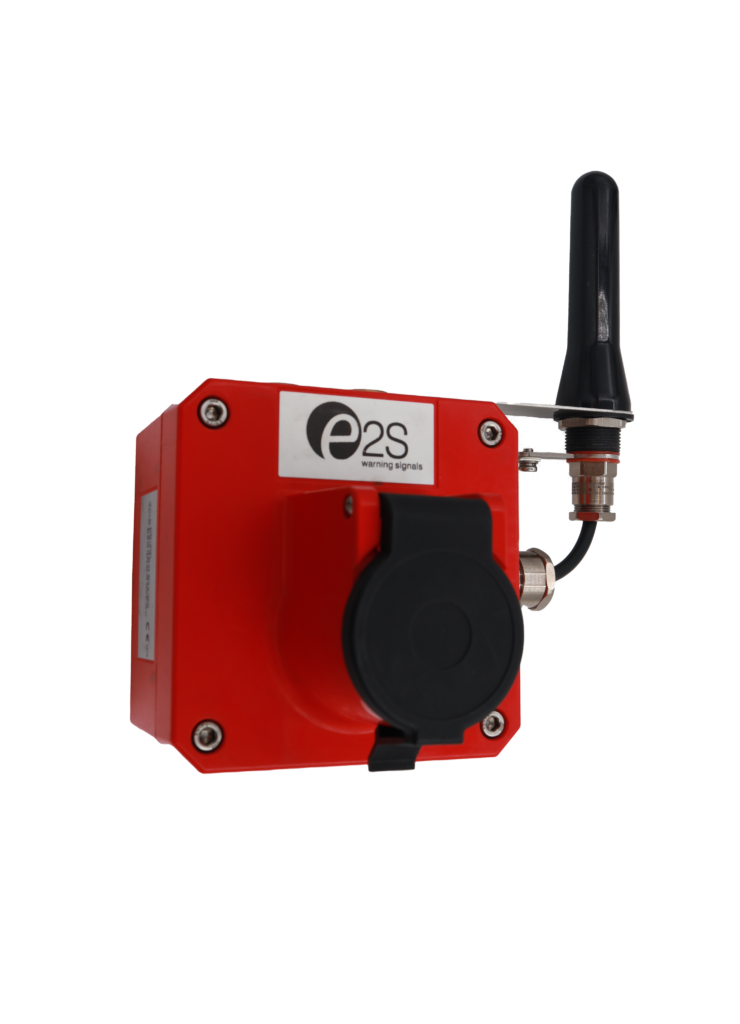

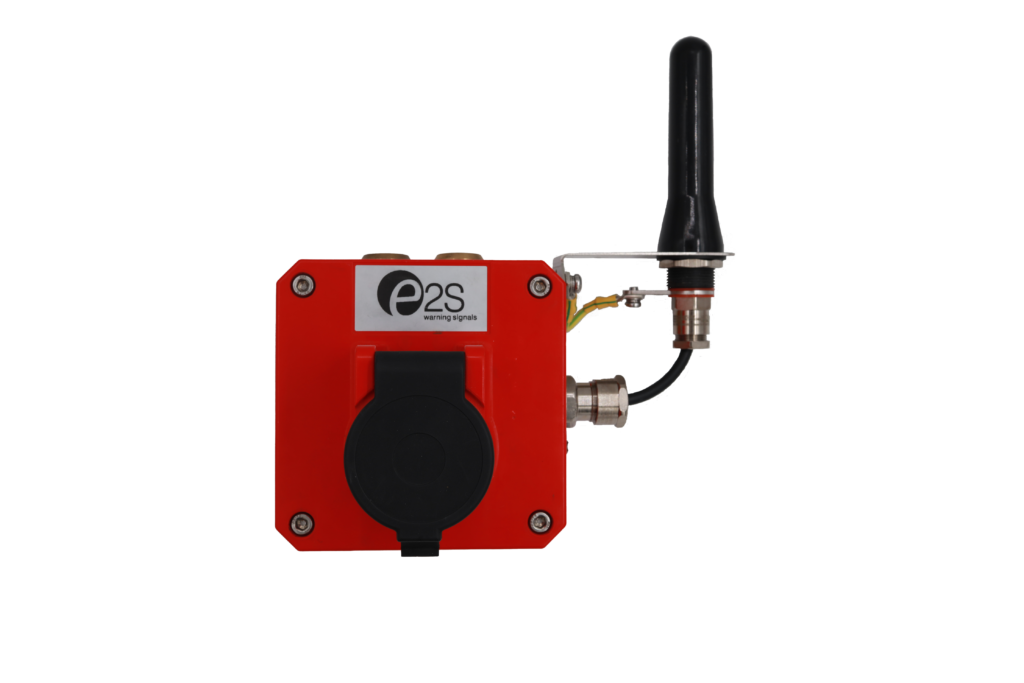

The wireless explosion proof RadioPush Button RPB-CP7-GRP latching PB with manual reset Ex d manual call point features a robust GRP enclosure with a 316 stainless steel mechanism and IP66/67 rating – designed for the harsest hazardous environments. The RadioPush Button from Mimes enables wireless IIoT for both standard and SIL2 applications. Utilizing the ISA100 wireless standard, it prioritizes both safety and cybersecurity, featuring PROFIsafe protocol and 128-bit AES encryption. The built-in RadioModule and Ex antenna from Mimes enables a great flexibility. This versatility makes the RadioPush Button suitable for a wide range of applications, whether with new or existing installations that requires wireless signaling. Additionally, it is certified for use in explosive atmosphere and hazardous areas, including zones 1 and 2.

Line powered product 24 vdc
Low power consumption
Router and I/O device roles
The RadioPush Button gives the option of SIL2 safety communication using PROFIsafe over ISA100.11a
Encrypted wireless communication
Robust IP66/67 GRP enclosure

Approvals

SIL2 compliant to IEC 61508 (2010)

ATEX DEMKO 19 ATEX 2101X

IECEx IECEx ULD 19.0007X

DNV TAA000034V

Standards

IEC 61326-1

IEC 61000-1-2

IEC 61000-6-1

IEC 61000-6-2

IEC 61000-6-7

IEC 61010-1

EU RED art. 3.1a / 3.1b / 3.2

ETSI EN 301 489-1 / 301 489-17

ETSI EN 300 328

EN / IEC 60079-0

EN / IEC 60079-1

Version	Part Code
Product type	RPB-CP7
Safety	I S	Standard/Industrial SIL2
Wireless Protocol	W1	ISA100 2.4GHz
Power	L	24vdc
Switch type	S D	SPCO/SPDT DPCO/DPDT
Terminals	T04	4x 2,5mm²
Colour	R S	Red colour Custom
Antenna	A1 A4	Ant-1 Type 2 bracket 90mm (Left angle, Ex e) Ant 1 Extended bracket Type300-245 (Ex e)
Product version	P1	ATEX/IECEx Ex d
Standard versions	RPB-CP7-PM-GRP-I-W1 RPB-CP7-PM-GRP-S-W1	RPB-CP7-PM-I-W1-L-S-T04-R-A1-P1 RPB-CP7-PM-S-W1-L-S-T04-R-A1-P1

DC	24v dc (20-30v dc)
Max input Current	3.0 A max
Lift flap	Latching lift flap included as standard
Ingress Protection	IP66/67/68 to EN/IEC 60529; 4/4X/3R/13 to UL50E/NEMA250
Ingress Protection Switch	IP67
Enclosure Material	GRP (Glass Reinforced Polyester), Anti-static & UV stable
Enclosure Colour	Red
Cable Entries	2 x M20x1.5 mm
Earth	External M5 earth connection
Wiring	2.5-0.35 mm²
Operating Temp	-40°C to +70°C [-58°F to 158°F]
Dimensions	134 x 134 x 137 (without antenna); 227 x 253 x 137 (with antenna)
Humidity	95%, Non condensing
Net Weight	2.3 kg / 5.7 lbs
ISA100.11a	Frequency: 2400-2475MHz

Encryption	128-Bit AES
Network Modes	STAR/MESH/STARMESH
Antenna Connection	MMCX
Antenna	Omnidirectional 2.4-5.8 GHz
Communication	PROFIsafe/ISA 100.11a
External Communication (Gateway Dependant)	Modbus TCP, OPC UA, PROFIsafe/PROFINET
Range	500 meters, extendable through Mesh network

Dimensions	134 x 134 x 137 (without antenna)
Dimensions	227 x 253 x 137 (with antenna)
Net Weight	2.3 kg / 5.7 lbs
Cable Entries	2 x M20x1.5 mm

Certifications
